Coupling capacitors are commonly used in the following scenarios:

• 01

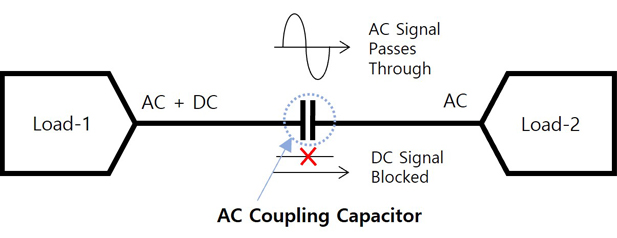

  AC Coupling

  In audio amplifiers and many other electronic circuits, it is important to remove any DC voltage offset from the input signal. AC coupling capacitors are placed in series with the input or output to block the DC component, allowing only the AC component to pass through. This ensures that the signal remains centered around zero volts.

• 02

  Signal Isolation

  AC Coupling capacitors can be used to isolate one part of a circuit from another. For example, they can prevent a DC bias from affecting an amplifier or protect sensitive components from DC voltage levels that could cause damage.

• 03

  Frequency Response Control

  AC Coupling capacitors can be used to control the low-frequency response of a circuit. By selecting the appropriate capacitance value, engineers can determine the lower cutoff frequency below which the circuit's response starts to roll off
